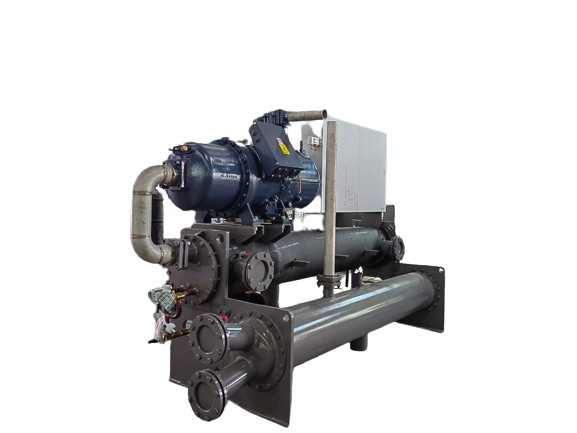

280HP Water Cooled Screw Chiller Water Cooling Chiller

Brand Name : ANGES

Model Number : 280HP

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C

Delivery Time : 30 days

Packaging Details : Plywood case

Type : Water Cooled Screw Type

Cooling capacity : 1064 kw

Compressor : 280 hp

Condenser : Shell and Tube

Evaporator : Shell and Tube

Voltage : 3PH~220V/380V/415V~50HZ/60HZ

Condition : Brand new

Dimension (l*w*h) : 4250*1320*2150 mm

Warranty : 12 Months

Refrigerant : R22/R134a/R407c/R410a

Weight : 4230 kg

Temperature : 5℃~30℃

Contact Now

Water Cooling Chiller Water Cooled Liquid Chiller Water Cooled Chiller Screw Compressor Water Cooled Chiller System

Water screw chiller system- efficient industrial cooling
Screw chiller capactiy range is from 140kw to 760kw, water cooling temperature if adjustable 5 - 30 ℃. See our screw chiller catalogue for more details.
Water-cooled chiller systems have a cooling tower and use cooling water for heat dissipation and it's higher efficiency than air-cooled chillers, which is perfect choice that use for process cooling for heat dissipation.This system includes item below.

Water-cooled chiller
Cooling tower
Cooling pump
Insulated water storage tank
Internal circulating pump and External process circulating pump
Screw chiller i and heat extraction as it is vital to yield high quality products. This includes process such as plastic injection, plastic extruding, bottle blowing, film blowing and many other thermoplastic materials that need to be heated to their molten temperature and then be solidified through cooling water from industrial chiller.

Water-cooled screw chiller specification

Model Item

 AGS-280WDH
Nominal cooling capacity kcal/h 915040
kw 1064
Input power kw 212
Max running current A 482.3
Power supply 3PH-380V-50HZ
Refrigerant Type R22
Type of control expansion valve
Compressor Type semi-hermetic screw
Power(kw) 105.8×2
Start-up mode Y-△
Capacity control 0-25-50-75-100
Evaporator Type shell and tube
Chilled fluid flow (m3/h) 183
Pipe diameter (inch) 6
Condenser Type shell and tube
Cooling water flow (m3/h) 219
Pipe diameter (inch) 5×2
Safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
Dimension mm 4250*1320*2150
Net weight kg 4230
Running weight kg 4560

Water-cooled screw chiller featurers

  1. Adopting high-efficiency and energy-saving compressors of world class grade brands, high-quality condensers and evaporators, high cooling efficiency, stable performance, low noise and long service life.
  2. The control system is adopting Siemens PLC controller and LCD touch screen , accurately controls the cooling capacity and cooling load of the unit in real time to achieve the best matching state, to ensure that the unit runs at the best efficiency and to reduce operating costs.
  3. Screw compressor chiller capacity control can adopt four-stage (100%-75%-50%-25%), three-stage (100%-66%-33%) or stepless control system.
  4. High-efficiency internally threaded copper pipes enhance the heat transfer effect are more energy efficient.
  5. The machine is all made of oshell and tube evaporator and condenser, the welded structure is simple, sturdy structure, high quality, compact structure, long life and so on.

Advantage​ of water cooling chiller

  • Energy Efficiency.Water-cooled chillers are generally more efficient than air-cooled chillers by using cooling water for heat dissipation from cooling tower.
  • Low noise.Water screw cooled chillers are quieter operation than air-cooled systems.
  • No open space needed.Water-cooled chillers no need to stay outdoors in an open space with plenty of fresh air to operate. The chillers installation can be indoor, which makes them ideal for companies that don't have enough outdoor space.
  • Lower operational costs and save time

Chiller service

  1. All the chillers are provided with 12 months free maintenance service.
  2. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
  3. If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
  4. Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
  5. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
